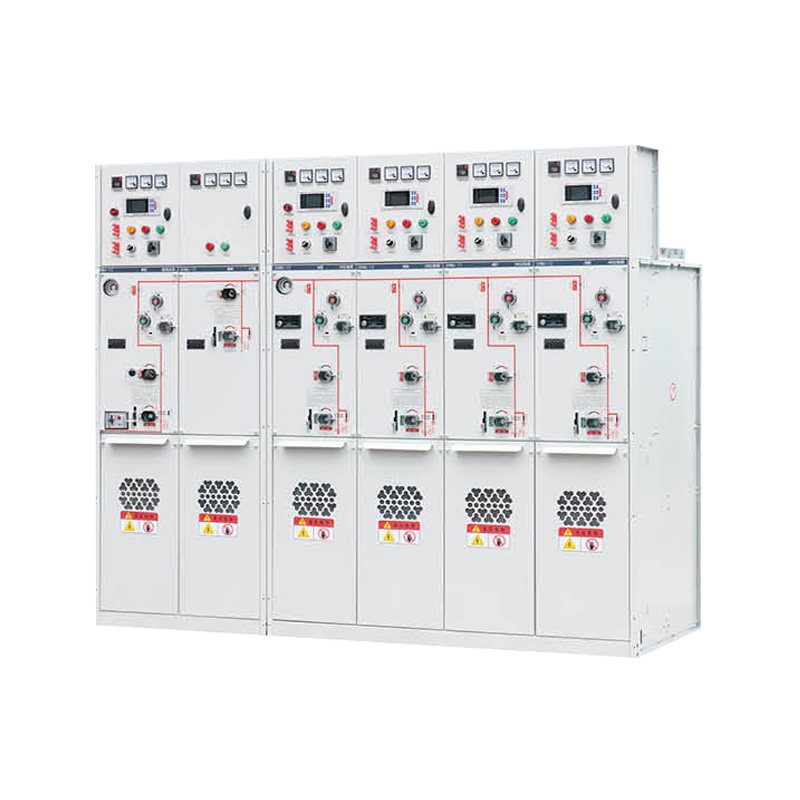

Tablero principal de anillo aislado lleno de gas: protección compacta para redes de distribución

el aparamenta principal de anillo lleno de gas aislado se ha convertido en una solución de conmutación y protección preferida para redes de distribución de media tensión, particularmente en sistemas subterráneos urbanos, instalaciones industriales y edificios comerciales que requieren una distribución de energía confiable en espacios reducidos. Esta aparamenta compacta utiliza hexafluoruro de azufre o gases alternativos respetuosos con el medio ambiente como medio aislante, lo que permite una reducción de tamaño significativa en comparación con la aparamenta convencional aislada en aire. Datos recientes de servicios públicos indican que las unidades principales de anillo llenas de gas han obtenido una adopción generalizada debido a su funcionamiento sin mantenimiento, características de seguridad mejoradas y su capacidad para soportar condiciones ambientales adversas.

Gabinete sellado y sistema de aislamiento de gas

el insulated gas-filled ring main switchgear is housed in a sealed, corrosion-resistant enclosure made from stainless steel or aluminum, with all live components enclosed within a gas-tight chamber filled with an insulating gas. The gas provides outstanding dielectric strength, enabling the switchgear to be designed with smaller clearances and a significantly reduced footprint compared to air-insulated equivalents. The sealed construction protects internal components from dust, humidity, and contamination, ensuring reliable operation in underground vaults or coastal areas where corrosion is a concern.

el enclosure is constructed with welded seams and gasketed joints to prevent gas leakage, with the internal pressure monitored continuously by a density sensor. The gas-filling system includes a pressure gauge and filling valve for maintenance. The insulation gas is maintained at a specified pressure, with automatic alarms if the pressure drops below the safe operating level. The sealed design eliminates the need for regular cleaning of insulation surfaces and reduces the risk of insulation failure from environmental contamination.

Funciones de conmutación integradas

el ring main switchgear integrates multiple switching functions within a single compact unit, combining load-break switches, circuit breakers, fuse switches, and earthing switches. The load-break switch allows safe interruption of load currents up to the rated capacity, enabling circuit isolation for maintenance without interrupting the entire network. The circuit breaker provides protection against short-circuit currents, automatically tripping to isolate faults. The fuse switch combines load switching with fuse protection, offering a cost-effective solution for transformer protection. The switching functions include:

• Conmutación de carga para aislamiento y conexión de circuito normal;
• Protección contra cortocircuitos mediante disyuntores integrados o interruptores fusibles;
• Seccionamiento de puesta a tierra para acceso seguro a mantenimiento;
• Funcionamiento motorizado para control remoto y automatizado.
• el switching mechanisms are designed for manual operation with clear visual indication of switch positions, and many models support motor operation for remote control and automation. Operating mechanisms are interlocked to prevent incorrect sequences.

Posiciones operativas y enclavamientos mecánicos

el ring main switchgear provides three positions for the switching devices: closed, open, and earthed. The closed position connects the circuit, allowing current to flow. The open position disconnects the circuit, isolating the load. The earthed position grounds the circuit, ensuring safe working conditions for maintenance. The switch positions are clearly indicated, and the operating mechanisms are interlocked. The interlocking system prevents incorrect operations.

Áreas de aplicación y factores de selección

el insulated gas-filled ring main switchgear serves various sectors including utility distribution networks, industrial facilities, commercial buildings, and renewable energy projects. In utility networks, the switchgear provides protection and switching for underground feeders. In industrial and commercial settings, it provides reliable power distribution. When selecting, buyers evaluate voltage rating and current capacity, gas type and environmental impact, enclosure type and degree of protection, and switching functions and control options. Buyers also consider compliance with relevant standards and the manufacturer's reputation for reliability and quality. Proper selection ensures reliable and efficient power distribution.
